Europa Access Hatch

Europa Access Hatch

$75.05
$75.05 $101.42
Color
Size

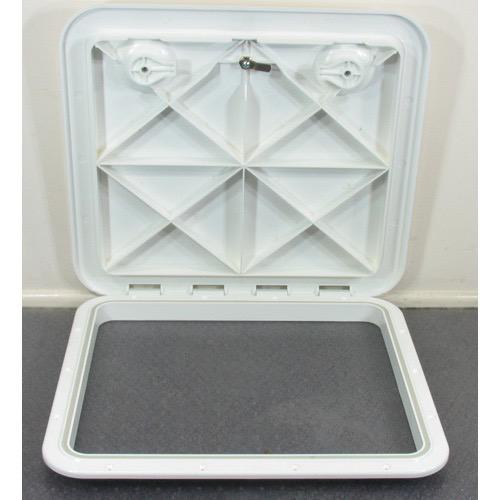

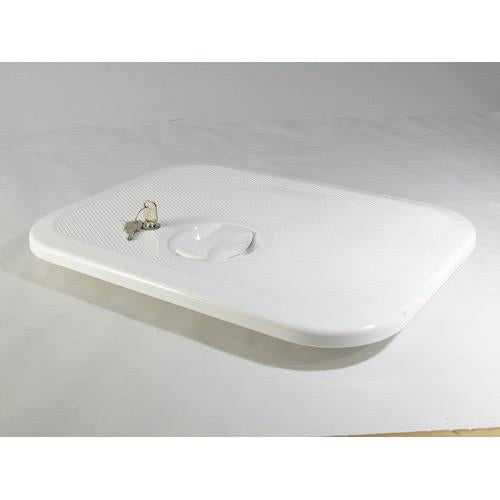

Low profile, injection moulded U.V. stabilised plastic hatches designed for installation on any internal or external flat surface. Reinforced lid with non-skid surface. The lid hinges through 180º and completely covers the mounting flange, concealing the fastenings and deflecting water away from the hatch seal. The seal ensures weatherproofing when the hatch is mounted on vertical surfaces. Contoured handles provide a positive twist lock action and easy lift grip. Protrusion above deck is only 17mm. Intrusion 20mm. Screw holes are 5mm countersunk. Available in a choice of white, grey or black, with or without key security lock.

Other Details:

BLA
Code		 Colour Key
Lock		 Outside
mm		 Inside
mm		 Cut Out
mm
173312 White No 283 x 375 192 x 294 200 x 302
173313 Grey No 283 x 375 192 x 294 200 x 302
173314 White Yes 283 x 375 192 x 294 200 x 302
173315 Grey Yes 283 x 375 192 x 294 200 x 302
173316 White No 375 x 383 294 x 294 302 x 302
173317 Grey No 375 x 383 294 x 294 302 x 302
173318 White Yes 375 x 383 294 x 294 302 x 302
173319 Grey Yes 375 x 383 294 x 294 302 x 302
173320 White No 470 x 515 378 x 435 386 x 443
173321 Grey No 470 x 515 378 x 435 386 x 443
173322 White Yes 470 x 515 378 x 435 386 x 443
173323 Grey Yes 470 x 515 378 x 435 386 x 443
173324 White No 363 x 600 272 x 518 280 x 526
173325 Grey No 363 x 600 272 x 518 280 x 526
173326 White Yes 363 x 600 272 x 518 280 x 526
173327 Grey Yes 363 x 600 272 x 518 280 x 526
