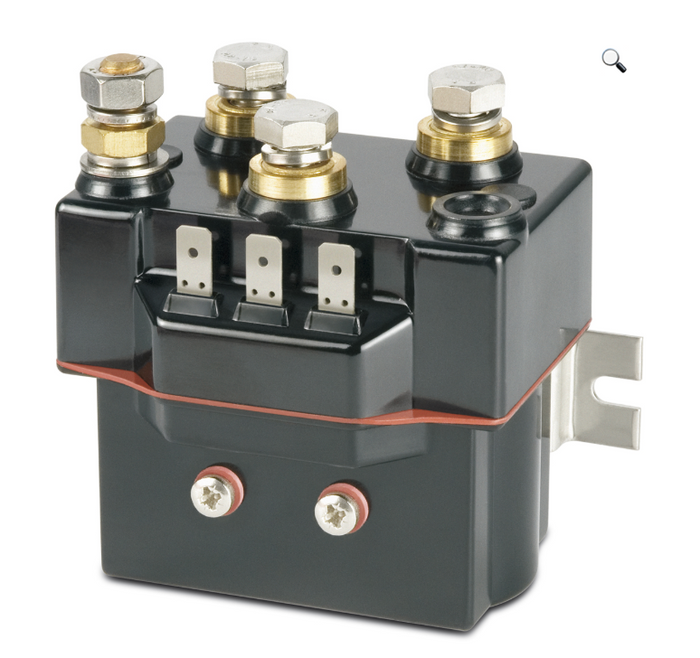

Quick T6415-12 Reversing Contactor 150A 12/24V (IP66)

The Quick T6415-12 is a dual direction reversing contactor unit designed to operate 12V and 24V windlasses and capstan electric motors up to 150A. External connections make wiring straightforward and installation easy. Commonly used with remote up/down panels, chain counters, wireless handheld remotes, and foot switches. The IP66 rated casing (excluding terminals) provides excellent water ingress protection — installation in a dry area is always recommended. Rated for higher wattage motors than the T6411 series, making it suitable for a wider range of windlass and capstan installations. Supplied complete with contactor unit and product sheet.

Key Features

• Dual direction reversing operation for windlass and capstan motors
• 150A working intermittent current (50% work cycle)
• 800A interruption capacity at 48V DC
• External connections for easy wiring and installation
• IP66 rated casing — installation in a dry area recommended
• Compatible with 700W, 1000W, 1400W, 1500W, 1700W, and 2500W motors
• 12V and 24V DC operation
• Genuine Quick Italian manufacture

Specifications

• Series: Quick T6415-12/24
• Voltage: 12V and 24V DC
• Working Intermittent Current: 150A (50% work cycle)
• Interruption Capacity: 800A at 48V DC
• Compatible Motor Wattages: 700W, 1000W, 1400W, 1500W, 1700W, 2500W
• Reversing Capability: Dual direction reversing
• Protection Rating: IP66 (excluding terminals)
• Origin: Genuine Quick Italian manufacture
• Contents: Contactor unit and product sheet
• Application: Dual direction reversing operation of 12V and 24V windlass and capstan motors
