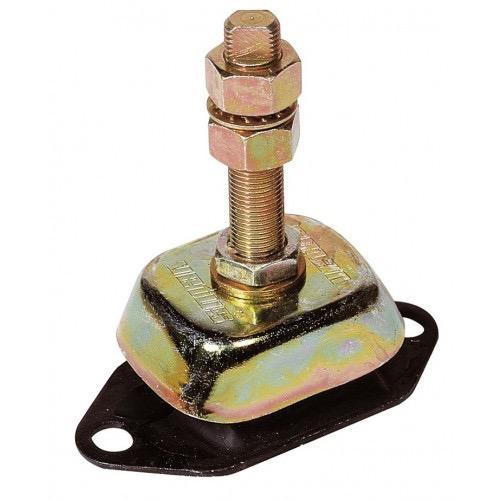

VETUS flexible engine mountings use a special rubber compound engineered for excellent vibration damping in marine applications. Each type is matched to a specific engine size and power range — select the correct model based on your engine's weight and cylinder count.
Type K25V & K35V — For small engines and generator sets with 1 or 2 cylinders (4–15 kW / 6–20 hp)
Type K40A — For 3-cylinder marine diesel engines. Soft rubber compound optimised for lightweight vessels. Internal buffers limit engine movement on start/stop; secured against overload and shear.

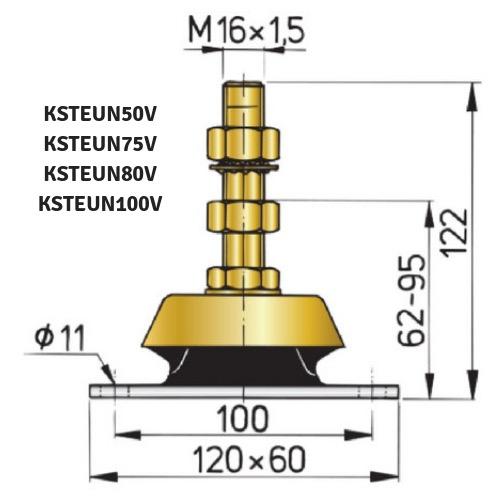

Type K50V / 75V / 80V / 100V — For smaller engines up to ~60 kW (80 hp)
Specifications
| Type | Stiffness: Vertical | Stiffness: Athwartships | Stiffness: Fore & Aft | Min. Load (kg) | Min. Compression (mm) | Max. Load (kg) | Max. Compression (mm) | Hardness (Shore °) |
|---|---|---|---|---|---|---|---|---|
| KSTEUN25V | 1 | 1.4 | 1.4 | 15 | 1.3 | 25 | 3 | 45 |
| KSTEUN35V | 1 | 1.4 | 1.4 | 15 | 1.3 | 30 | 7 | 45 |
| KSTEUN40A | 1 | 1 | 2.4 | 25 | 5 | 40 | 8 | 50 |
| KSTEUN50V | 1 | 0.75 | 2.5 | 25 | 2 | 50 | 4 | 45 |
| KSTEUN75V | 1 | 0.75 | 2.5 | 38 | 2 | 75 | 4 | 55 |
| KSTEUN80V | 1 | 0.75 | 2.5 | 40 | 2 | 80 | 4 | 60 |
| KSTEUN100V | 1 | 0.75 | 2.5 | 50 | 2 | 100 | 4 | 65 |
