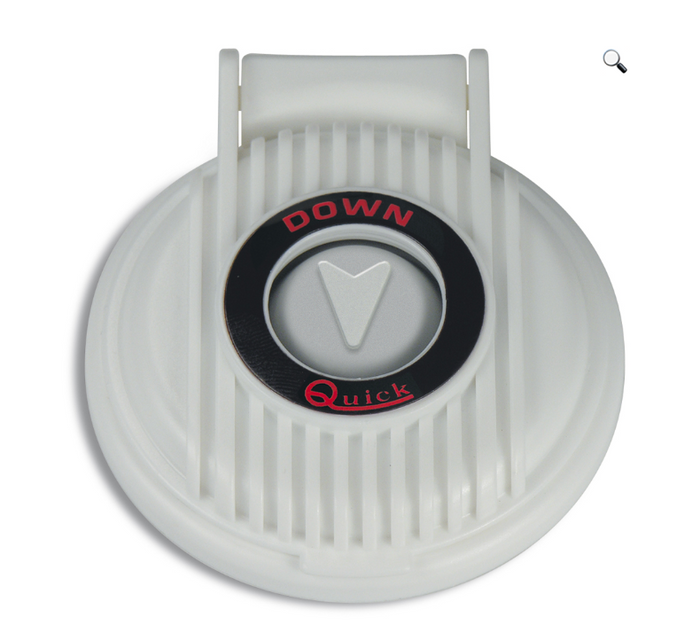

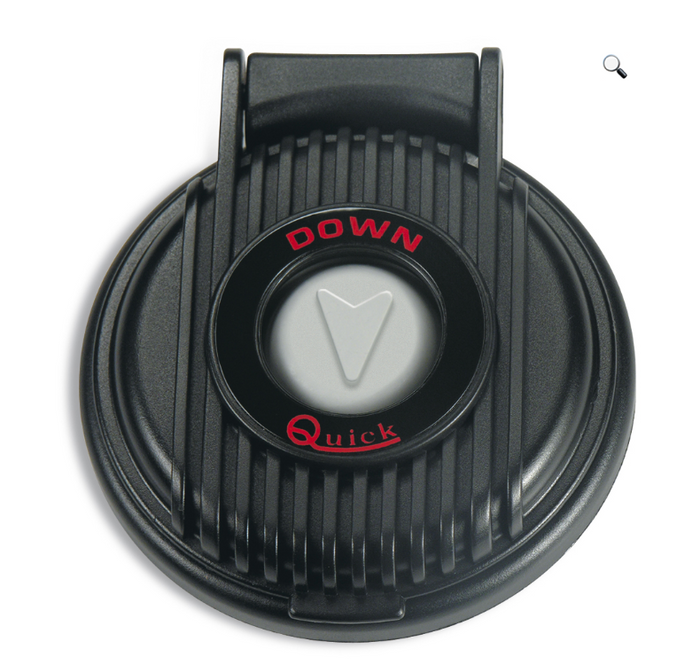

Quick Foot Switch Down FP900DB/W (Black or White)

The Quick FP900DB/W is a foot switch designed for hands-free anchor lowering (Down) operation. A normally open contact activates with a simple press and releases immediately when pressure is lifted. A rugged hinged protective lid prevents accidental activation when not in use. Available in black or white housing with a grey button — specify colour when ordering. Must be used in conjunction with solenoids.

Key Features

• Hands-free anchor Down operation — press to lower, release to stop
• Normally open contact for intuitive, momentary operation
• Hinged protective lid to prevent accidental activation
• Available in black or white housing with grey button
• Supplied with screws and mounting template for easy installation
• Must be used with solenoids
• Compatible with Quick windlass systems

Specifications

• Model: FP900DB00000A00
• Series: Quick FP900DB/W
• Function: Down — anchor lowering
• Colour: Black or White housing, Grey button — specify when ordering
• Contact Type: Normally open
• Current Rating: 5A DC
• Dimensions: 76mm W × 85mm L × 17mm H
• Safety Feature: Protective hinged lid
• Contents: Foot switch, screws, mounting template
• Installation Note: Do not use silicone during installation
• Application: Windlass anchor down foot switch
