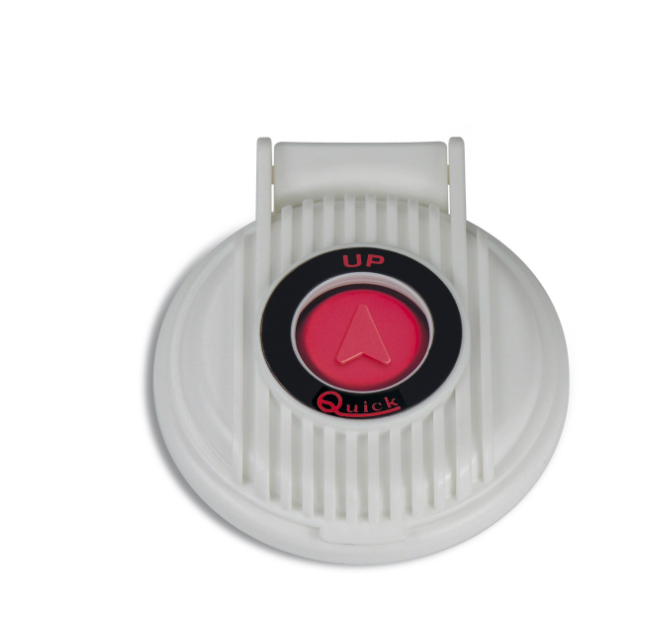

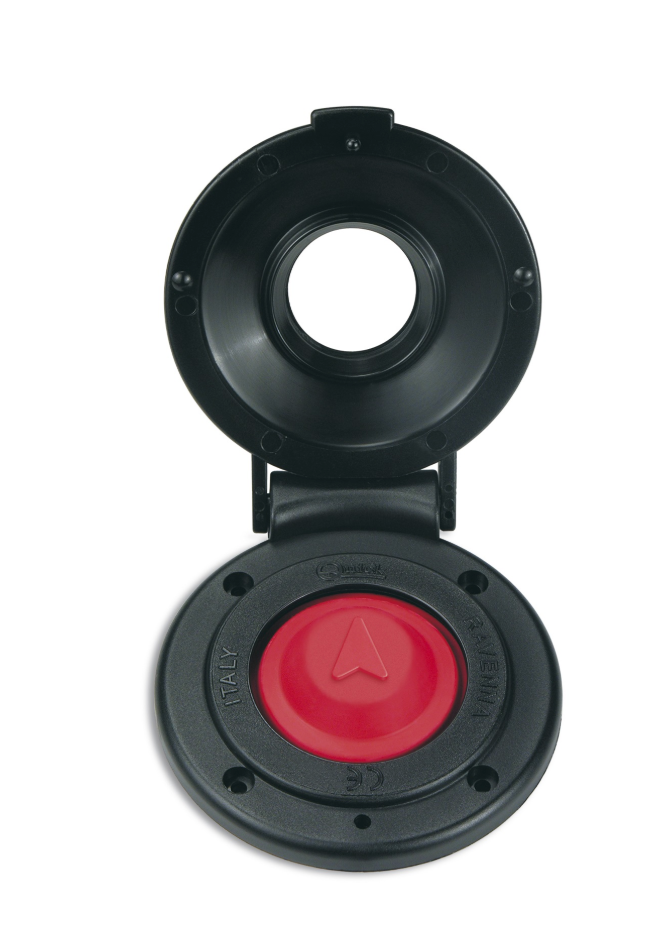

Quick Foot Switch Up FP900UB/W (Black or White)

The Quick FP900UB/W is a foot switch designed for hands-free anchor retrieval (Up) operation. A normally open contact activates with a simple press and releases immediately when pressure is lifted. A rugged hinged protective lid prevents accidental activation when not in use. Available in black or white housing with a red button — specify colour when ordering. Must be used in conjunction with solenoids.

Key Features

• Hands-free anchor Up operation — press to retrieve, release to stop
• Normally open contact for intuitive, momentary operation
• Red button for clear Up function identification
• Hinged protective lid to prevent accidental activation
• Available in black or white housing
• Supplied with screws and mounting template for easy installation
• Must be used with solenoids
• Compatible with Quick windlass systems

Specifications

• Model: FP900UB00000A00
• Series: Quick FP900UB/W
• Function: Up — anchor retrieval
• Colour: Black or White housing, Red button — specify when ordering
• Contact Type: Normally open
• Current Rating: 5A DC
• Dimensions: 76mm W × 85mm L × 17mm H
• Safety Feature: Protective hinged lid
• Contents: Foot switch, screws, mounting template
• Installation Note: Do not use silicone during installation
• Application: Windlass anchor up foot switch
